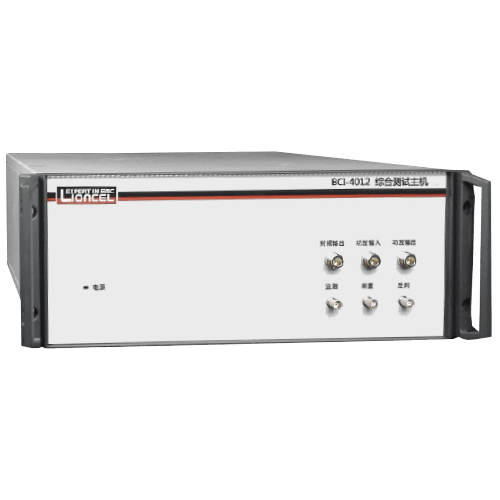

BCI-4012 Vehicle electronic bulk current injection(BCI) test system

BCI-4012 is the only domestic bulk current injection test system (BCI) which fully meets the ISO 11452-4 standard.


1. Upper computer control, standard Chinese and English professional test software, complete function and excellent scalability.

2. The power meter, current injection probe and calibration probe are from international famous manufacturers, and the test accuracy is guaranteed.

3. Frequency range of system: 100kHz~400MHz;

4. Built-in signal source frequency range: 9kHz~1GHz;

Built-in power amplifier frequency range: 100kHz~400MHz, 120W optional, linear power indicators.

6. Built-in power meter: 9kHz~3GHz;

7. Automatic calibration, fully automatic test and output power monitoring;

8. External expansion test, support open-loop injection method and closed-loop test method.

Technical parameter:

Power amplifier :  Output frequency  100kHz~400MHz
MAX output power : 125W (linear power)
Harmonic :  <15dBc
Power meter :  Input frequency  9kHz~3GHz
Input power :  -40dBm~+30dBm
System configuration :  Software Support Windows system
Control port :  USB
Output port :  N-type adaptor
Size :  19''/4U
Weight :  40kg
